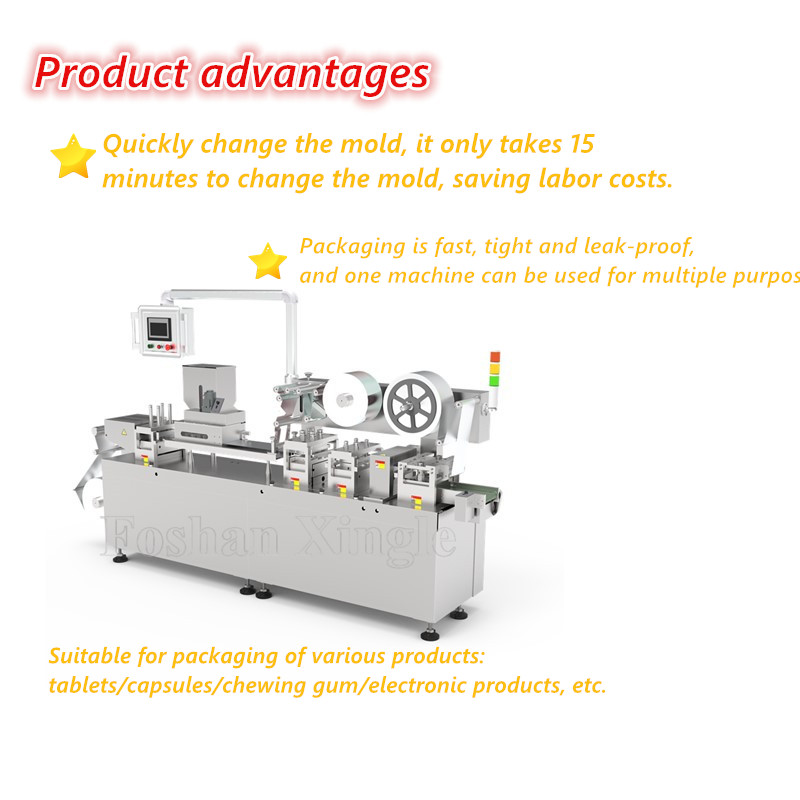

China Mini Sauce Jam Contact Lens Honey Blister Packaging Hot Sealing Machine for Blister Packing
Product Description
Forming

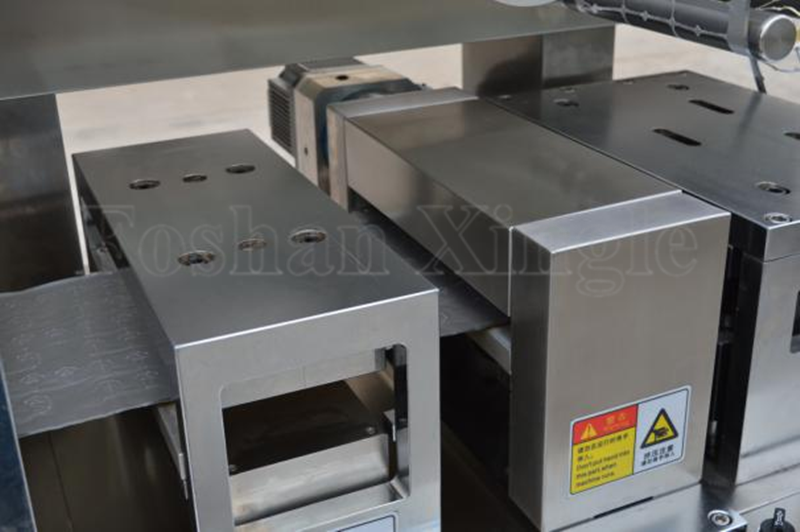

Tractor

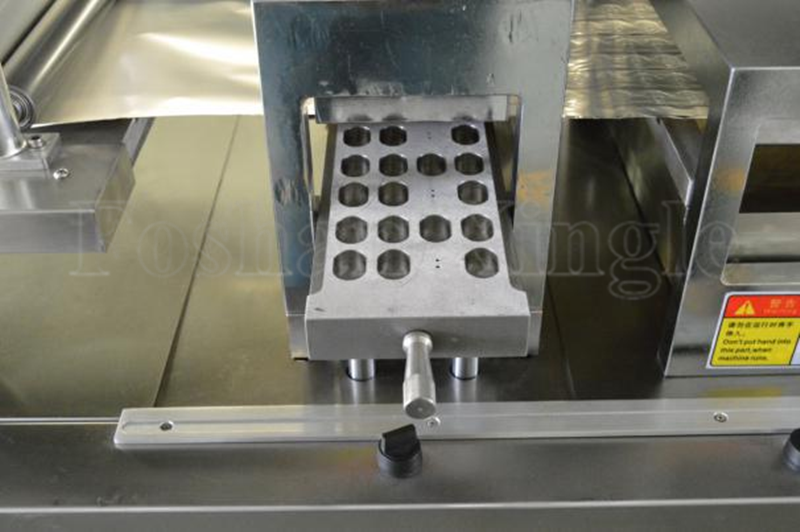

Heat-sealing

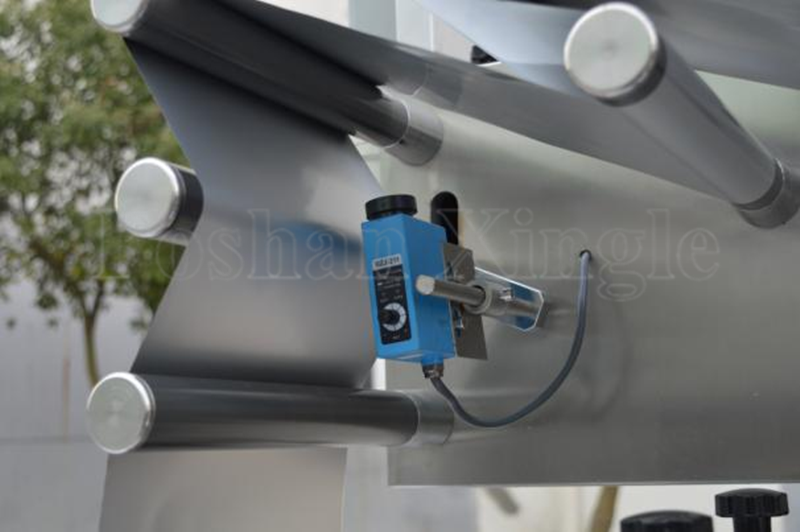

Electric Light

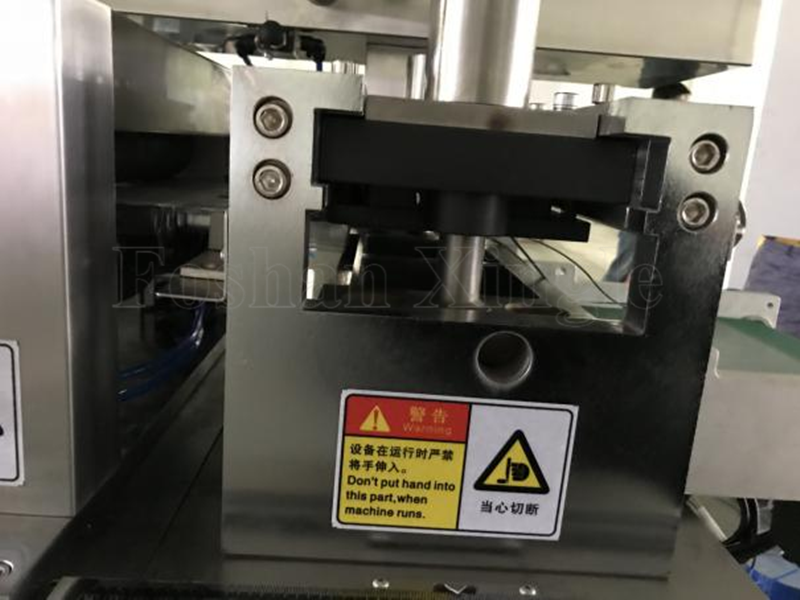

Blanking

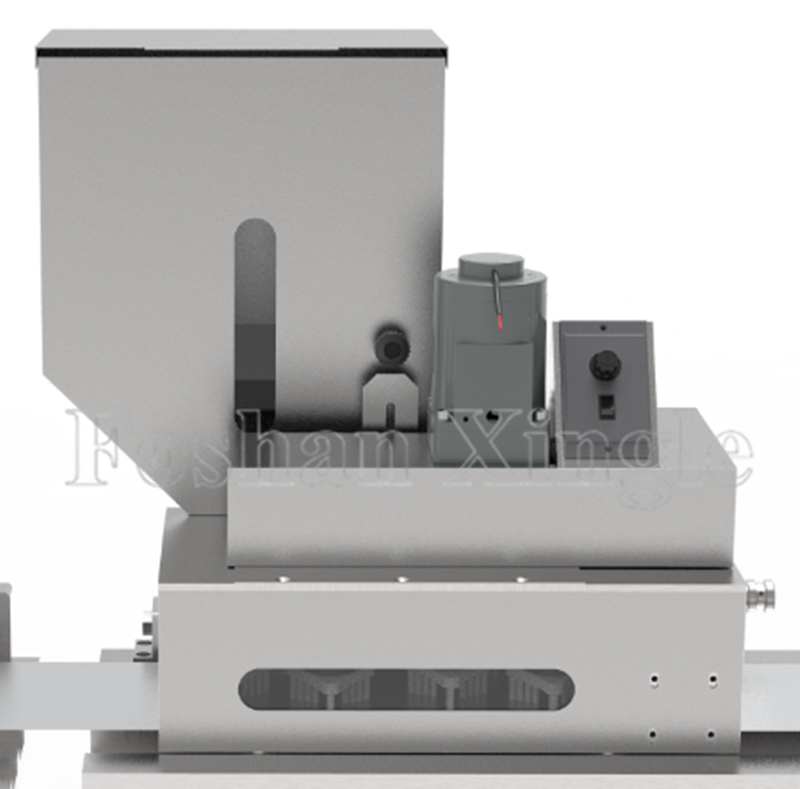

Feeder
Application

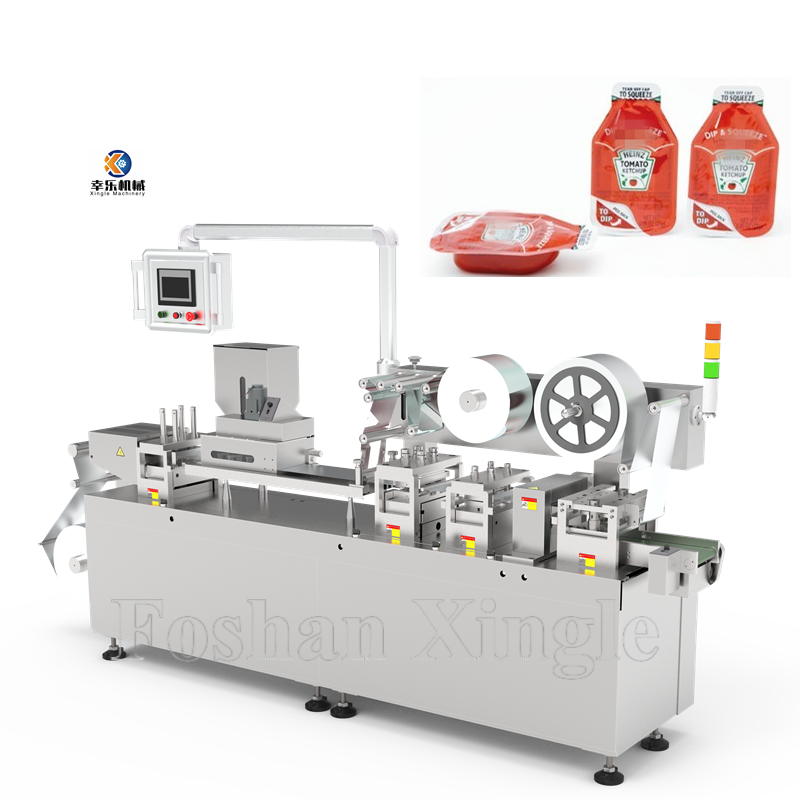

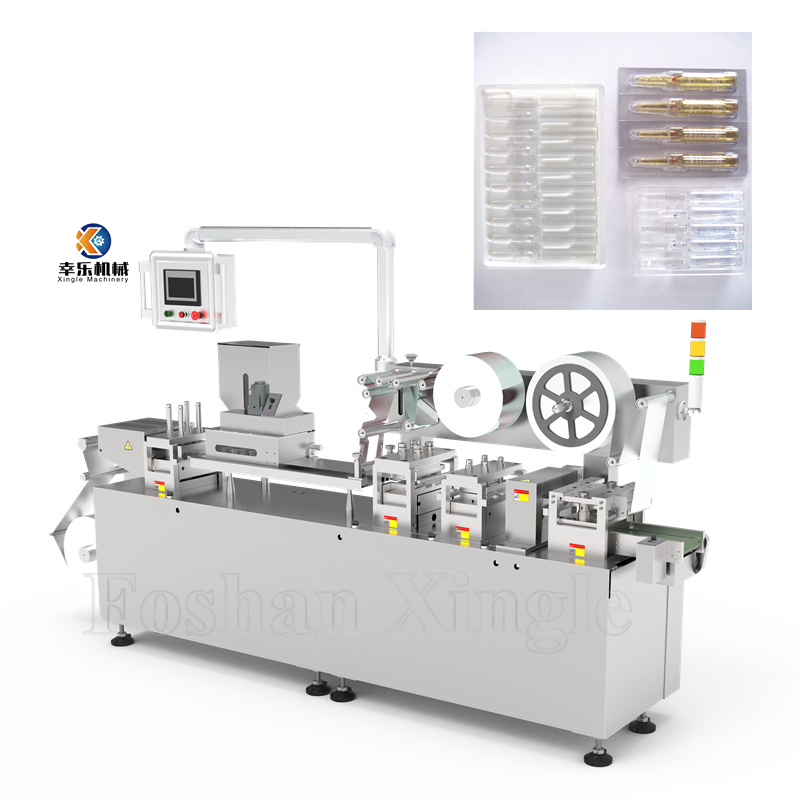

DPP-160A ALU-PVC Blister Packaging Machine
-

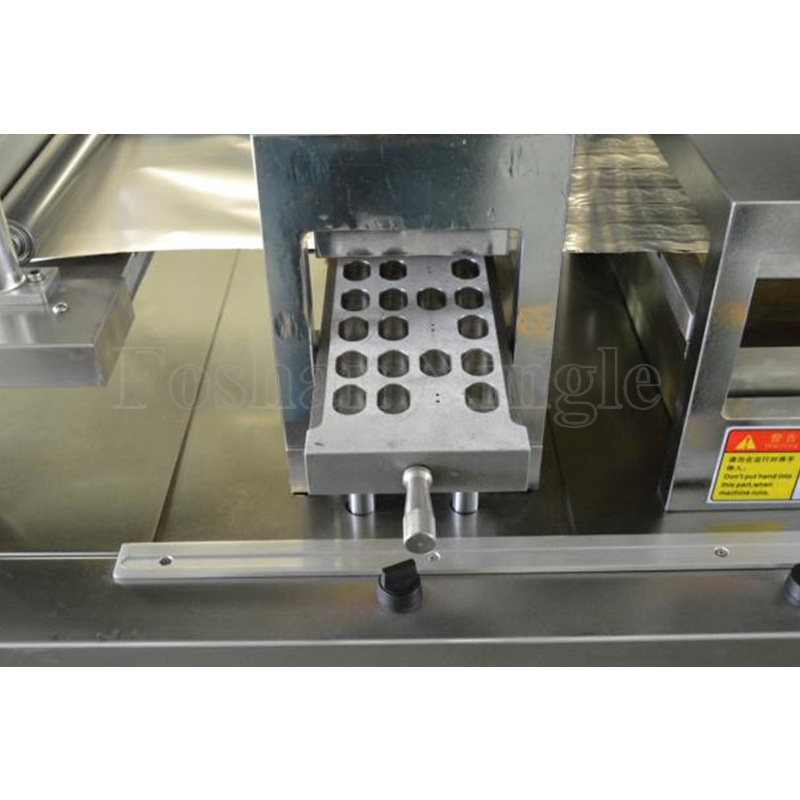

Pulling length can be adjusted. Mold is fixed by located groove so that it's easy to change mold. The machine heats the PVC through heated board and forms by compressed air frothing.
-
Speed is controlled by inverter. It adopts the interface of human-machine and PLC controller. Universal feeder is adopted for feeding.
-
With automatic feeder, the mould and feeder can be designed according to customer's specific requirements.
-

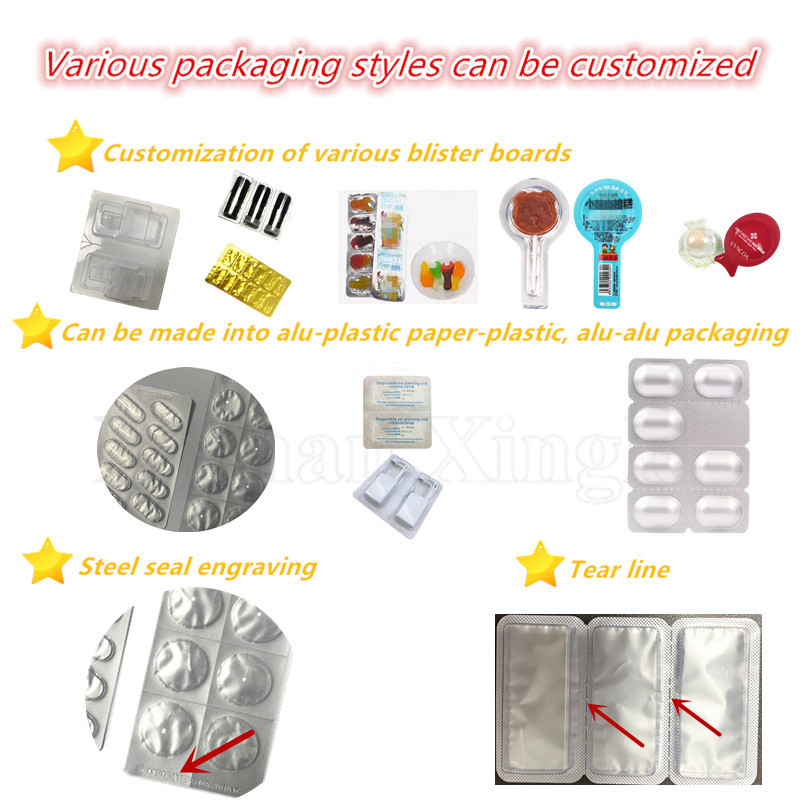

Equipped with functions for Easy Cutting line embossing, batch number embossing, and waste packaging material rewinding.
-
Step motor is adopted on the machine for precise control over pulling length, effectively saving packing material.
-
Heating molds automatically separate when the machine stops, contributing to protect the packing material from being overheated.
Technical Specifications
| Model | DPP-160A |
| Punch Frequency | 15-35 times/min (ALU-PVC) |
| Max. Forming Area & Depth | 140x110 mm (Standard depth ≤15mm, Max. depth 20mm as adjusted) |
| Standard Stroke Range | 30-120 mm (Customizable as per user requirements) |
| Air Pressure | 0.4 - 0.6 Mpa |
| Compressed Air Required | Air compressor ≥ 0.4 m³/min |
| Total Power Supply | 380V 3P 50Hz 5.5Kw |
| Main Motor | 1.2 Kw |
| PVC Hard Film | 0.15 - 0.5 * 160 (mm) |
| PTP Aluminum Film | 0.02 - 0.035 * 160 (mm) |
| Dialysis Paper | 50 - 100g * 160 (mm) |
| Mould Cooling | Tap water or recycling water |

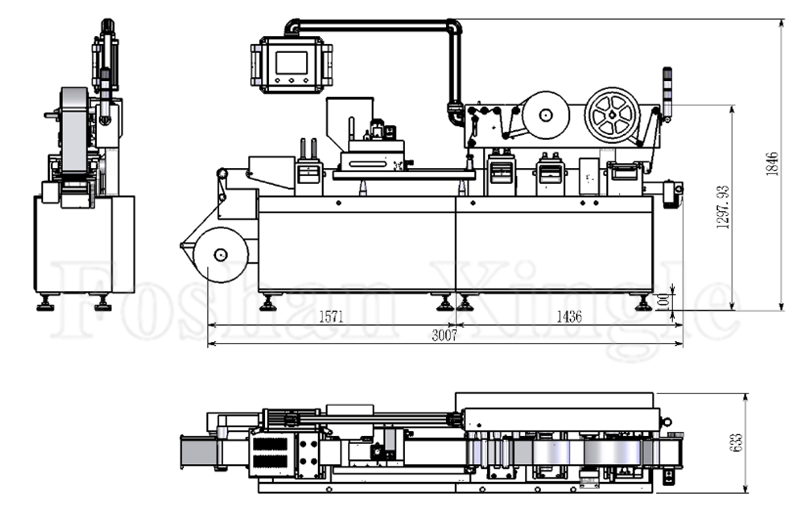

| Overall Dimension | 3000 * 700 * 1900 (mm) (L * W * H) |
| Weight | 1200 kg |
| Noise Index | < 75 dBA |
About Foshan Xingle Machinery Equipment Co., Ltd.
Foshan Xingle Machinery Equipment Co., Ltd. is a company with strong development potential located in Foshan City, Guangdong Province. We engage in all kinds of machinery, including blister packaging machines, liquid packaging machines, tube filling and sealing machines, oral liquid filling machines, coating machines, mixing machines, pulverizers, mixing tanks, vial washing machines, ampoule filling and sealing machines, etc.
At present, our products are exported worldwide with guaranteed quality and secure after-sales service. Our products meet international standards such as GMP and CGMP, aiming to provide customers with high-quality equipment and reliable services across food, chemical, and pharmaceutical industries.
Adhering to the business philosophy of "Good Quality and Good Service" and the principle of "Customers purchase high-quality and easy-to-use equipment", we bring sincere and top-tier solutions directly to our global clients.
Frequently Asked Questions (FAQ)
What packaging materials can the DPP-160A machine process?
The machine supports PVC hard film (0.15-0.5*160mm), PTP Aluminum film (0.02-0.035*160mm), and Dialysis Paper (50-100g*160mm) for ALU-PVC blister packaging.
How does the DPP-160A control pulling length and forming accuracy?
It utilizes a step motor for precise pulling length control to minimize material waste, alongside located grooves that fix the mold firmly and enable compressed air frothing for optimal forming.
Can the molds and automatic feeder be customized?
Yes, custom molds and automatic feeders can be engineered and configured based on specific product dimensions and client production line requirements.
What safety mechanisms protect materials when the machine stops?
The machine features automatic separation of heating molds upon shutdown, ensuring that temperature-sensitive packaging materials are not scorched or damaged.
Does Foshan Xingle Machinery comply with GMP standards?
Yes, all packaging equipment produced by Foshan Xingle Machinery meets international standards including GMP and CGMP, serving clients in the pharmaceutical, chemical, and food sectors.
